Side Mount Stud Bracket
Side Mount Stud Bracket
Product Specifications
| Product Type: | Straight Stud |
| Available Lengths: | 12" & 18" |
| Load Rating: |
700lbs
Load Rating based on UD Load per pair of brackets |
| Product PackSize: | 1 |

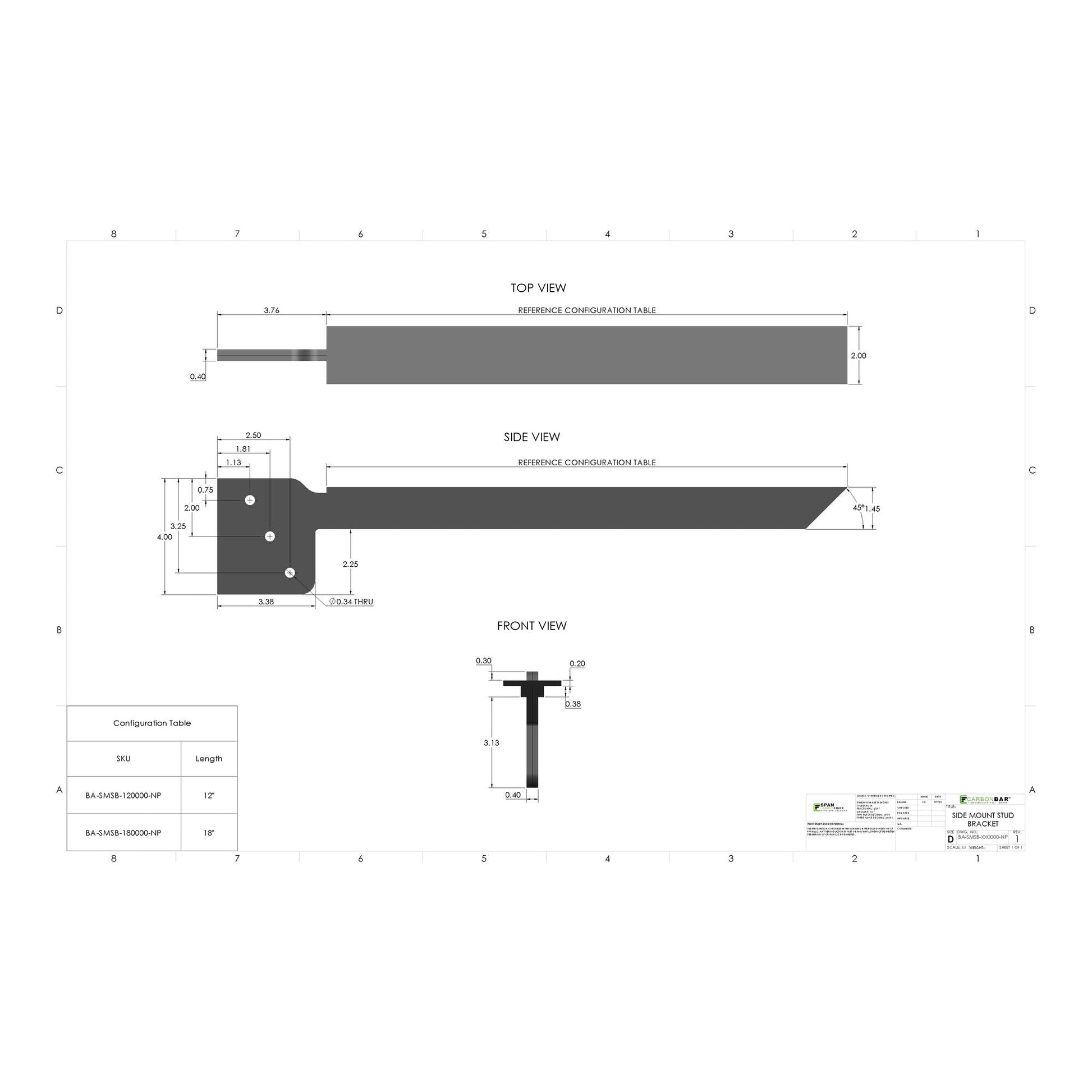

| Technical Drawing: | BA-SMSB-XX0000-NP.pdf |
The industrial-grade carbon fiber Side Mount Stud Bracket is engineered to provide improved strength and longevity in floating countertops, shower benches, and other weight-bearing application. This bracket has the following key featuresMinimal visibility for a smooth, floating appearance
- Can hold up to 700 lbs of weight

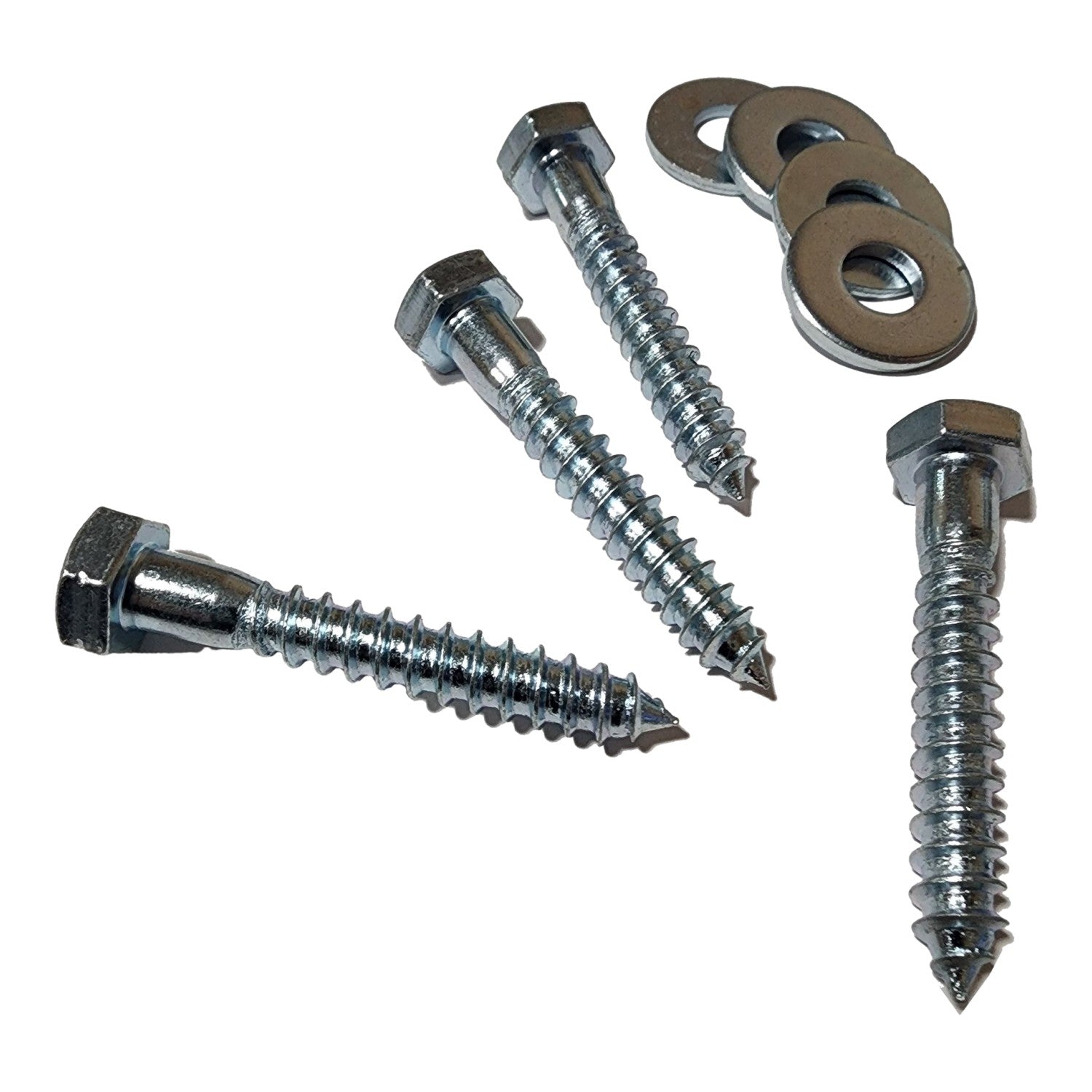

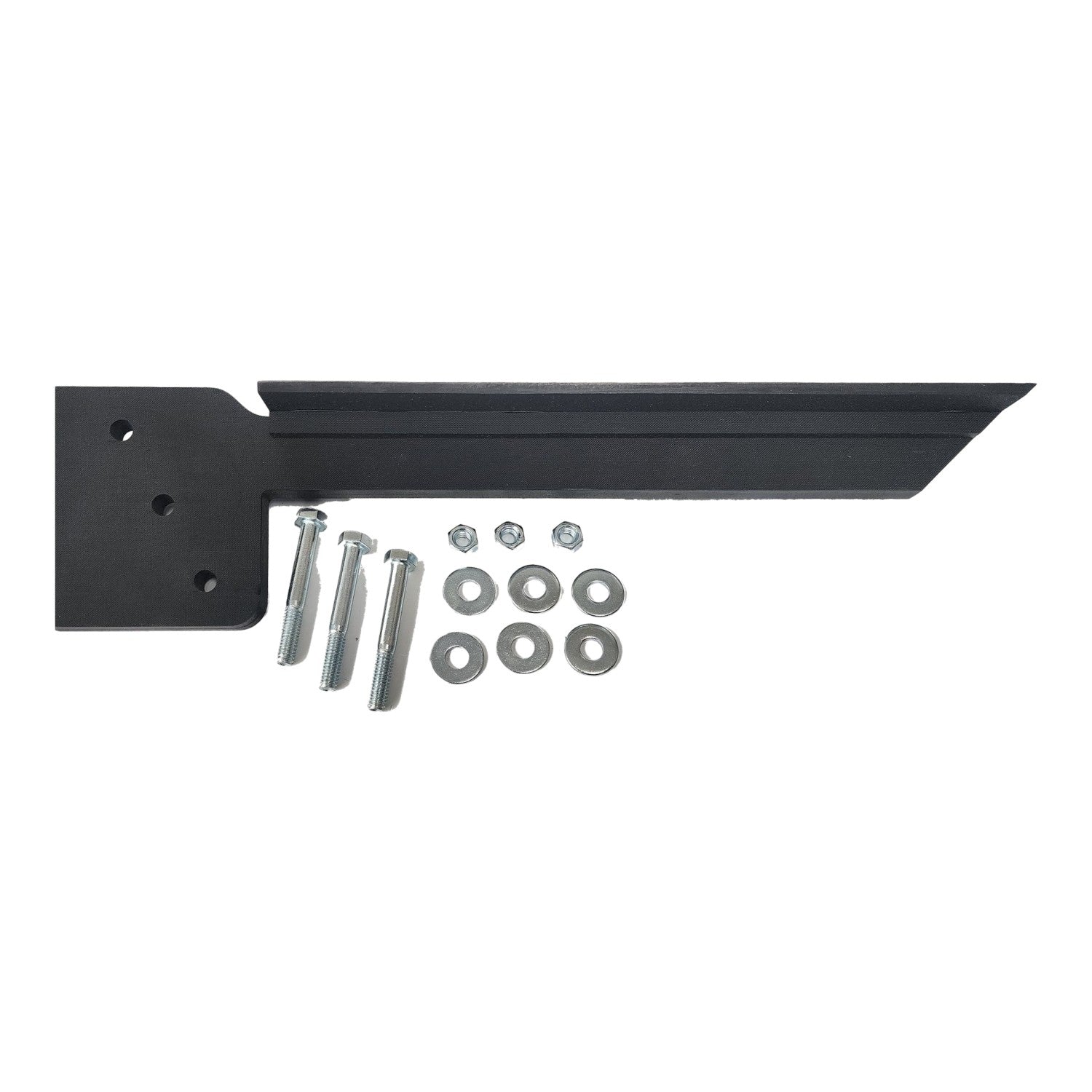

- Bolts, nuts, and washers are included
- Is five times lighter than steel while still being stronger
- Enables on-site fitting, sizing, drilling, cutting, and handling
- Easily reinforce structures for improved span and load capacity
- Corrosion resistant
- Available in two lengths (12” 18”)
